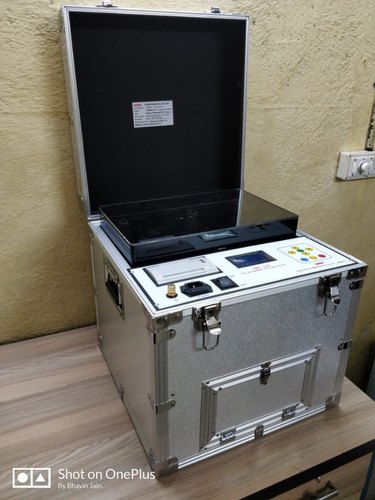

Automatic Transformer Oil Test Set with Printer
In Stock
Donec volutpat purus tempor sem molestie, sed blandit lacus posuere. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut posuere mollis nulla ut consectetur.
Category: Transformer Oil Test Set
Product Description
Oil Test is an equipment designed to test the dielectric strength of Insulating Oils as per relevant specifications vis. IS 6972. It is a useful equipment for Transformer / Switch Gear manufacturing units. Oil fettering agencies, repair shop and electrical maintenance departments.
System description:INSULATING OIL TESTERThe system is fully automatic and carries out tests according to the set or chosen menu like ‘Number of tests, Settlingtime, Stir time and Waiting time’. System time, setting of test parameters, status and data is displayed on LCD. Audio beep is given after the test is complete and the results can be printed on built-in printer. The test results can be recalled for view
Additional Information:
- Item Code: NMC-100
- Production Capacity: 10 PER MONTH
- Delivery Time: 3-4 weeks
- Packaging Details: Standard Packing to ensure safe transportation.
| Accuracy | 1% |
|---|---|
| Brand | NMC |
| Capacity | 100KV |
| Feature | MEMORY SAVE |
| Display | LCD |
| Frequency | 50% |
| Input Voltage | 230VAC |
| Operation | AUTOMATIC |
| Dimension | 15'' * 15'' * 15" |
| Packaging Type | INDUSTRIAL PACKING |
| Power Supply | 230VAC |
| Internal Memory | YES |
| Model Number | NMC-100 |
| Pc Interface | YES |
| Printer | YES |
| Weight | 40KGS |
•Easy operation-Fully automatic test cycle along with average BDV display.
•Automatic change of sample number of test.
•Automatic calendar and time running even with power off.
•Recall and print last 99 test results stored for 100 years even with power off.
•Programmable: Number of tests, Settling time, stir time, and waiting time.
•LCD displays: Test status, HV rise, HV fall, BDV of previous test and test results.
•Tests to: IEC 156, IS 6792, JIS C2101, BS 5874, VDE 0370 etc.
•Countdown display of time in ‘Settling, Stir, and Waiting’ modes.
•Built in printer.
•RS 232 interface (optional).
•Zero start safety and test chamber access interlock.
•Ergonomic design, completely user friendly-just 35 kg in weight.
