Product Description

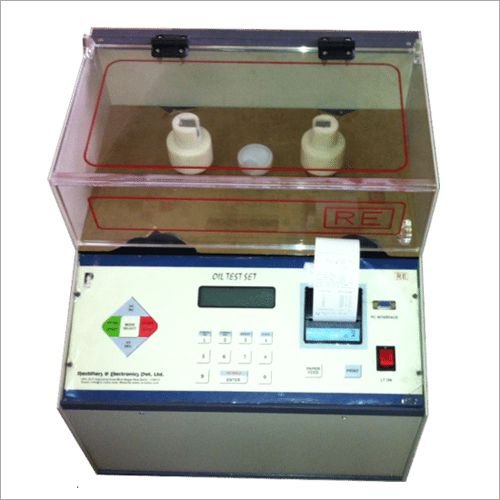

NMC''s Transformer BDV Oil Test Set is a portable unit as per relevant Indian Standard Specification IS :6792 :1992, suitable for operation on 230 / 240 Volts, A.C. 50 Hz. A three core flexible cable is connected to the unit with three pin socket to connect the mains. The H.V. Transformer is a completely dry, resin encapsulated with two H.V. terminals with mounting saddles. The center point of the transformer is earthed, so that the voltage of each terminal to earth is only half the test voltage.

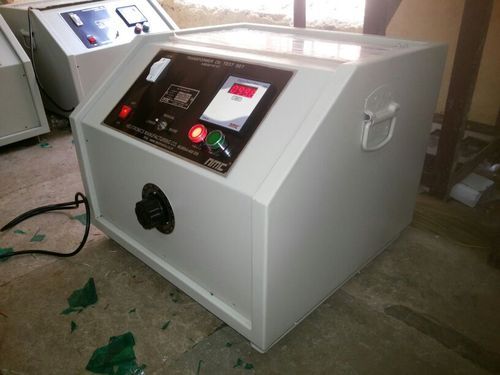

Maximum safety of operator as well as the equipment is ensured while designing. The output regulator is interlocked at its minimum position so that H.V. can be switched ''ON'' only when the voltage regulator at ''zero'' and the hood is shut. The output voltage regulator must be brought to ''ZERO'' after every test. The hood leading to H.V. terminals has a safety switch fitted, so that opening of the hood shuts the H.V. OFF''. The equipment is a portable compact single unit of pleasing appearance & colour. Fabricated sheet steel cabinet duly powder coated & provided with substantial lifting handles. All controls and indicators are located on a front panel duly marked for easy operation.
