Product Description

Input Supply: 230 V ± 10 %, AC, 50 Hz, 1 Phase (Ground must).
Display: 16 X 2 Big size LCD display with backlight.
Accuracy : Class 0.5
Resolution: 1 milli second
Count: 1 to 9999 milli second
Operation: Accurate Measurement for Close and Trip Command for Breakers
Through Trip-Free Operation C-O-C timing can be measure accurately.
Up to 99 No. of Bounces for Close Operation on all three Pole can be count.(Model: CBT CP)
Measure timing up to 7 numbers of Bounces on all pole.(Model: CBT CP)
Reset for Next Measurement.
Indicate the Status of Pole (Close /Open) during start of Test on LCD Display.

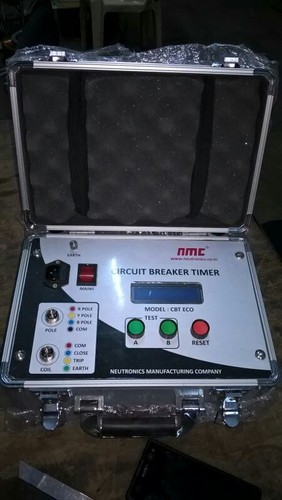

Front Panel : Operation Guide Sticker Plate, and Connectors. .(with Printer on Model: CBT CP)
Housing : Aluminum Carrying Case Enclosure.
Accessories : Mains Power Cable, Probe set of 5 MTR long, computer Interface cable for
connecting with PC or Laptop and Bag. (Optional), User’s Manual and Test Report.
AVAILABLE MODEL:
· Model: CBT CP, with PC Interface and software.
· Model: CBT P, without PC Interface and without Software.
