Product Details

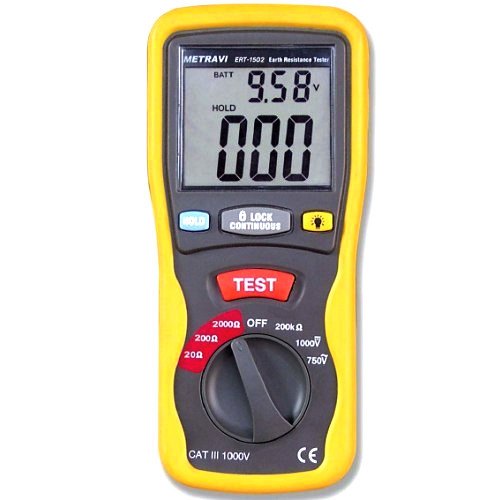

Digital Earth Resistance Tester, ERT-1502

 In Stock

Donec volutpat purus tempor sem molestie, sed blandit lacus posuere. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut posuere mollis nulla ut consectetur.

Model No.: N/A

Product Description

Our Earth Tester is a very successful replacement of the conventional generator type hand tester. This device is most extensively used to test the earthing installation in numerous power based industries, electrical traction systems and telecommunication networks.

download brochure
Model Name/Number

vary

Usage/Application

Industrial

Brand

vary

Display

vary

Measuring Frequency

vary

Features

vary

The applications of this product are:



  • It can be used for measurements of the other low regular and liquid resistances
  • It can also be used for measurement of voltage AC, voltage DC and resistance
  • It is designed for measurement of the resistance of earthing used in the electrical equipment as well as for measurement of ground resistivity

The features of this product are as follows:



  • Earth resistance range

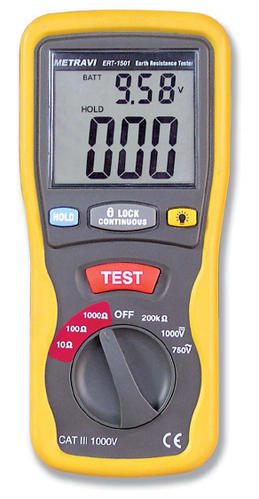

  • 0~1000(ERT-1501)
  • 0~2000(ERT-1502
  • Display: large LCD with dual display



Multimeter function range:



  • 200 k
  • 750 V/ACV
  • 1000 V/DCV
  • Sampling rate: 2.5 times per second
  • Zero adjustment: automatic adjustment
  • Over range indicator: number 1 of highest digit is displayed
  • Low battery indication: the “ “ is displayed when the battery voltage drop below the operating voltage



Operating Temperature:



  • 0ºC to 40ºC (32ºF to 104ºF)
  • Humidity < 80% RH



Storage Temperature:



  • -10ºC to 60ºC (14ºF to 140ºF)
  • Humidity < 70% RH
  • Power source: DC9V (6x1.5V Size “AA” battery or equivalent)
  • Dimensions: 200(L) x 92(W) x 50(H) mm
  • Weight: approx 700 g include battery



Accessories:



  • 4 sets test kits
  • 4 pcs iron rods
  • 6 pcs battery
  • carrying case
  • manual
  • Accuracies are specified in the way: ±(…% of reading +…digits) at 23ºC±5ºC,below 80%RH



Additional Information:

  • Item Code: ERT-1502
