Compact Automatic Voltage Regulating Relays
In Stock
Donec volutpat purus tempor sem molestie, sed blandit lacus posuere. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut posuere mollis nulla ut consectetur.
Category: Automatic Voltage Regulating Relay
Product Description

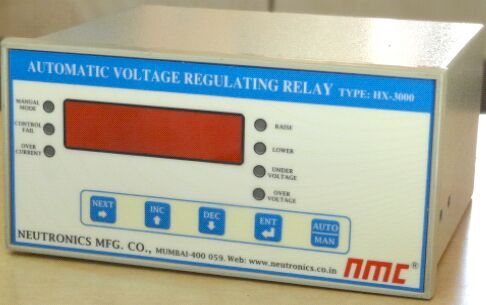

Product Details : NMC''s Automatic Voltage Regulating Relays, TYPE :HX-3000.
DESCRIPTION :
NMC’s Microcontroller based Automatic Voltage Regulating Relays (AVR Relays) are latest technology based Relays used for regulating the secondary voltage of Power Transformers with On Load Tap Changer (OLTC). The Parameter settings are made through the front panel keys & are stored in NVRAM. Independent time delays can be set for first control pulse & subsequent pulses. Built-in Tap displays Tap number of Power Transformer. OLTC is blocked for UV, OV, OC, CF, Min/Max Tap Positions & Tap Fail . in manual mode, Tap Raise/Lower can be achieved through front keys. In TEST mode, Relays, Display and LED indications can be checked. A pair of contacts are available for Raise, Lower, UV, OV, Manual Mode, CF, TF & OC. There are two nos. of 5 Amps C.T.’s available, one for the Over Current blocking and L.D.C. & other for measuring the Current.
For More Information on this Contact Us on 9819450890 OR 9819070556
FEATURES :
Ø Microcontroller based architecture with A/D Converter.
Ø Password Protected.
Ø Auxiliary Supply : 85V-265V AC/DC
Ø Linear or Inverse Time Response.
Ø Relay “ON Timer”
Ø Built-in Tap Position Indicator upto 40 Taps.
Ø Readout of Primary / Secondary Voltages, Current & Tap No.
Ø Readout of KV / KI Voltage & Current.
Ø 7 segment bright red LED Displays.
Ø Independent Lower, Raise & Nominal value settings.
Ø Blocking for UV, OV, OC, Control Fail, Tap Fail & Min/Max Tap No.
Ø Auto / Manual Mode of Operation.
Ø Test Mode & Factory Reset Mode.
Ø Single pulse or Continuous pulse operation.
Ø Line Drop Compensator (L.D.C.).
Ø Data Logging.
Ø Modbus RS 485
Ø RTC
Ø 4-20mA output from PT Voltage & TPI for SCADA.
Ø PT display of 433V instead of 110V.
Ø Over Current Blocking.
Ø Additional C.T. for measuring the current
Ø BLOCKING FOR MIN. & MAX. TAP NO.
Ø Master / Slave Features.
Additional Information:
- Port of Dispatch: MUMBAI
- Delivery Time: 1 Day
- Packaging Details: Superior Packing used to avoid any transit damages.
