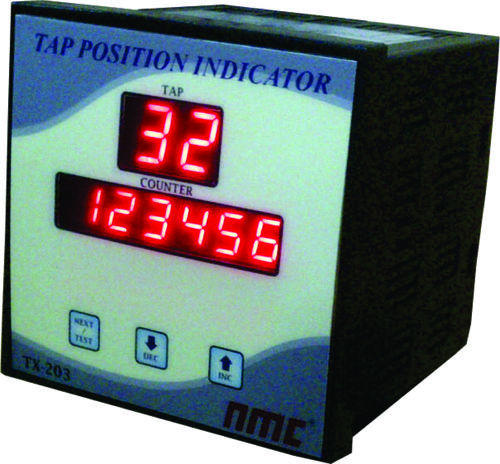

TPI with Counter
In Stock
Donec volutpat purus tempor sem molestie, sed blandit lacus posuere. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut posuere mollis nulla ut consectetur.
Category: Tap Position Indicator
Product Description
Our Digital Tap Position indicator with Counter Display is used to indicate the Tap Position of the Power Transformer with On Load Tap Changer as well as also indicates the counts of the tap changer.
download brochure| Brand | vary |
|---|---|
| Power Rating | vary |
| Color | vary |
| Accuracy | vary |
| Current Output | vary |
| Display | vary |
Technical Specifications :
- Micro controller based design
- Automatic detection of Number of Taps
- Built-in Tap Change Counter up to 999999 counts
- Resettable Counter
- 4-20mA DC Single Current Output for SCADA connectivity
- 4-20mA DC Double Current Output for SCADA connectivity (Optional)
- Automatic self adjustment of 4-20mA Current
- 85 to 265 V AC/DC Universal Power Supply
- Bright and clear 7-segment displays for long distance viewing
Additional Information:
- Item Code: TX-203
